  • UL DLC 50W LED Parking Garage Canopy light
  • UL DLC 50W LED Parking Garage Canopy light
  • UL DLC 50W LED Parking Garage Canopy light
UL DLC 50W LED Parking Garage Canopy lightUL DLC 50W LED Parking Garage Canopy lightUL DLC 50W LED Parking Garage Canopy light

UL DLC 50W LED Parking Garage Canopy light

  • Item No.: CNP-50W
  • Input Voltage: 100-277Vac ,100-347Vac , 200-480Vac
  • Beam Angle: 180degree
  • Dimensions:265*265*100mm/ 10.4X10.4X3.9
  • Product description: 50w canopy fixtures: IP65 can be outdoor using,use Meanwell driver and Osram led chip.
  • INQUIRY
Product Features


130lm/w or 150lm/w

Universal AC input 100-277Vac,100-347Vac,200-480Vac.
Protections: Short circuit / Over current/ Over temperature

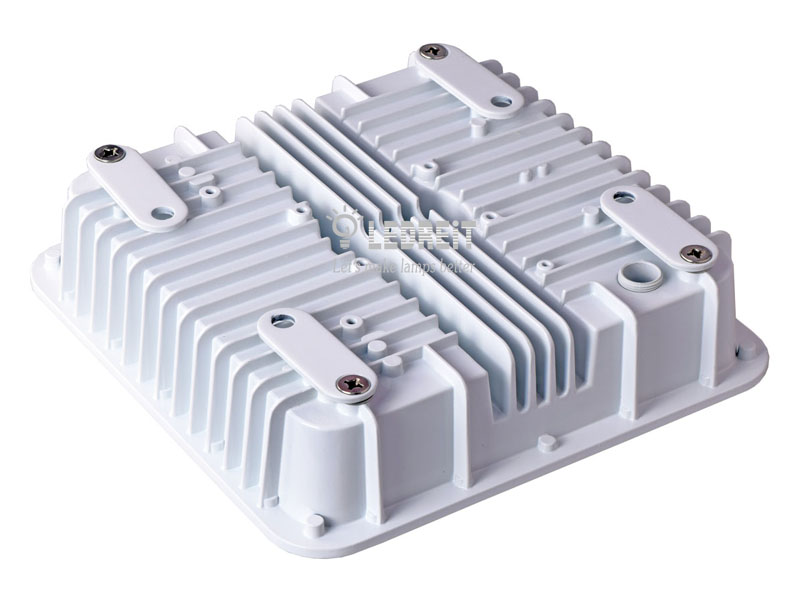

Aluminum heat sink.
Meanwell driver and Osram led chip.
IP65 can be outdoor using.


Mechanical Specification

50w canopy fixtures dimension

Technical Specifications
Item No. CNP-50W
Rated Power 50W
Input Voltage 100-277Vac,100-347Vac,200-480Vac
Input Current 0.72A / 115VAC ; 0.38A / 230VAC ; 0.32A / 277VAC
Power Factor PF>0.95
Power Efficiency >93%
Beam Angle 180degree
Light Source/Count Osram led
Lamp Base Wires
LED Luminous Efficiency 130lm/w or 150lm/w
Luminous Flux 7,500lm
Color Temperature Standard Warm White: 3000k
Natural White: 4000k
Cool White: 5000k
Color Rendering Index(CRI) Ra>83
LED Emitter Life 50,000hours
Replacement 105W-175W Metal Halide/HPS
Working Environment Indoor Lighting
Operating Temperature -40~50℃
The Dimensions 265*265*100mm/ 10.4"*10.4"*3.9"
N.W 3.3kg
Packing 4pcs/Carton
Packing Size (L*W*H) 49 * 30 * 32 cm


Application

Parking garage, Gas stations, other application

gas station canopy led retrofit application

Installation


The relevant product parameters


Item No.Rated PowerPower FactorReplacementLuminous FluxLEDCRI
CNP-50W50WPF>0.95105-175w MH, HPS 6,000lmOsram ledRa>83
CNP-60W60WPF>0.95175-250w MH, HPS 7,200lmOsram ledRa>83
CNP-75W75WPF>0.95250-300w MH, HPS 9,000lmOsram ledRa>83
CNP-80W80WPF>0.95200-250w MH, HPS12,000lmOsram ledRa>83
CNP-100W100WPF>0.95250-300w MH, HPS15,000lmOsram ledRa>83
