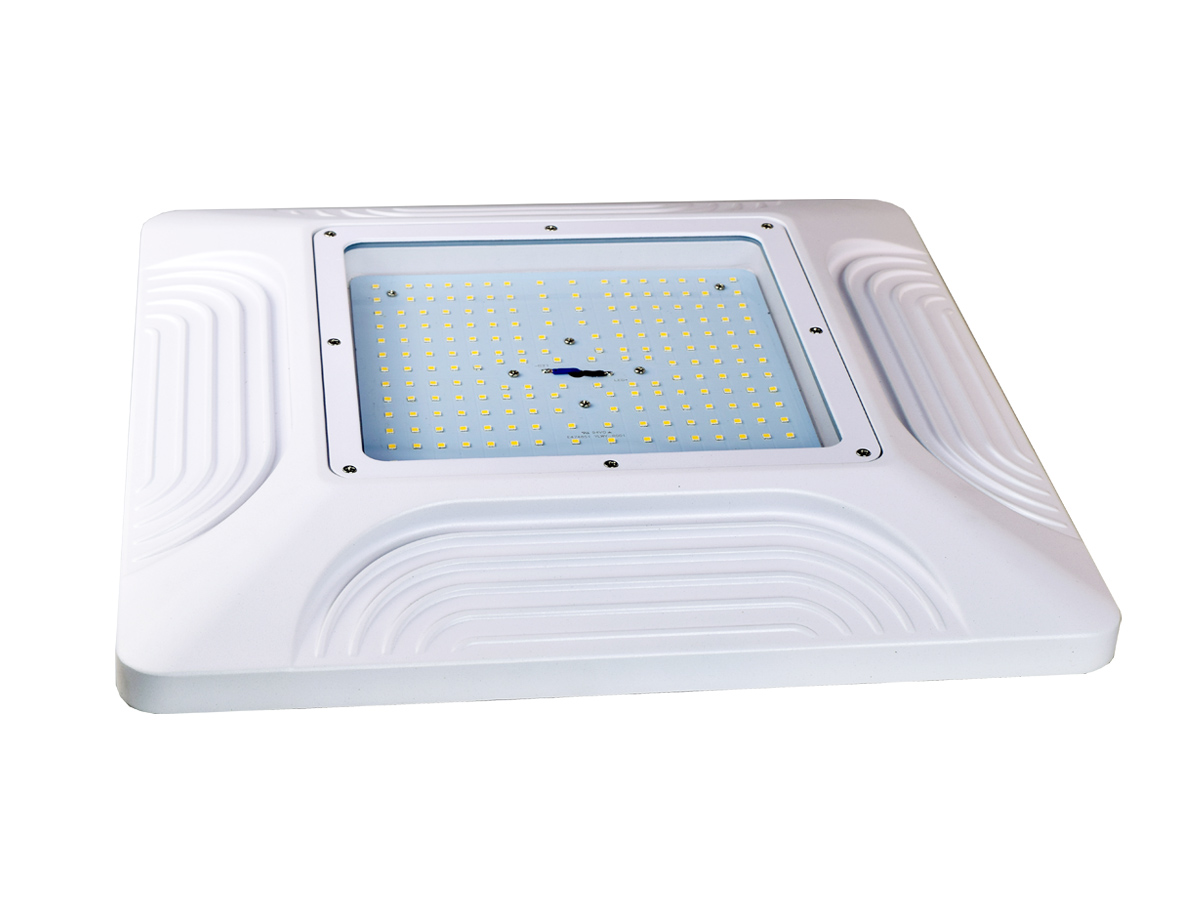

ETL DLC 120W LED Gas Station Light

Item No.: GSL-120W
Input Voltage: 100-277Vac ,100-347Vac , 200-480Vac
Replacement: 300-400w MH, HPS
Dimension: Dimensions: 280*280mm（11*11inch）
Product description: 120w gas station led lights is widely used for gas station lighting, and other places where need energy saving and high color rendering index lighting.
INQUIRY

120w gas station led lights feature

Product Features

• 130lm/w or 150lm/w.
• Universal AC input 100-277Vac,100-347Vac,200-480Vac.
• Protections: Short circuit / Over current / Over temperature.

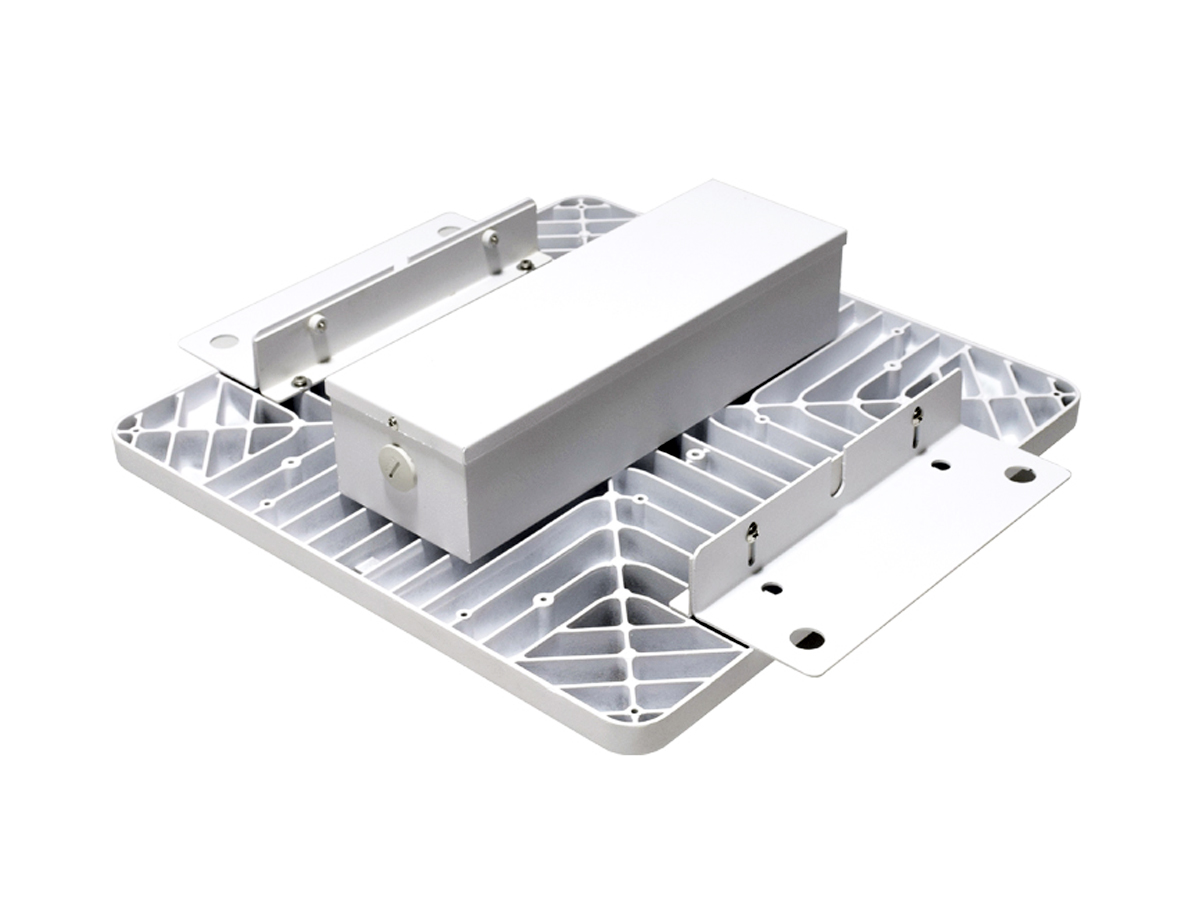

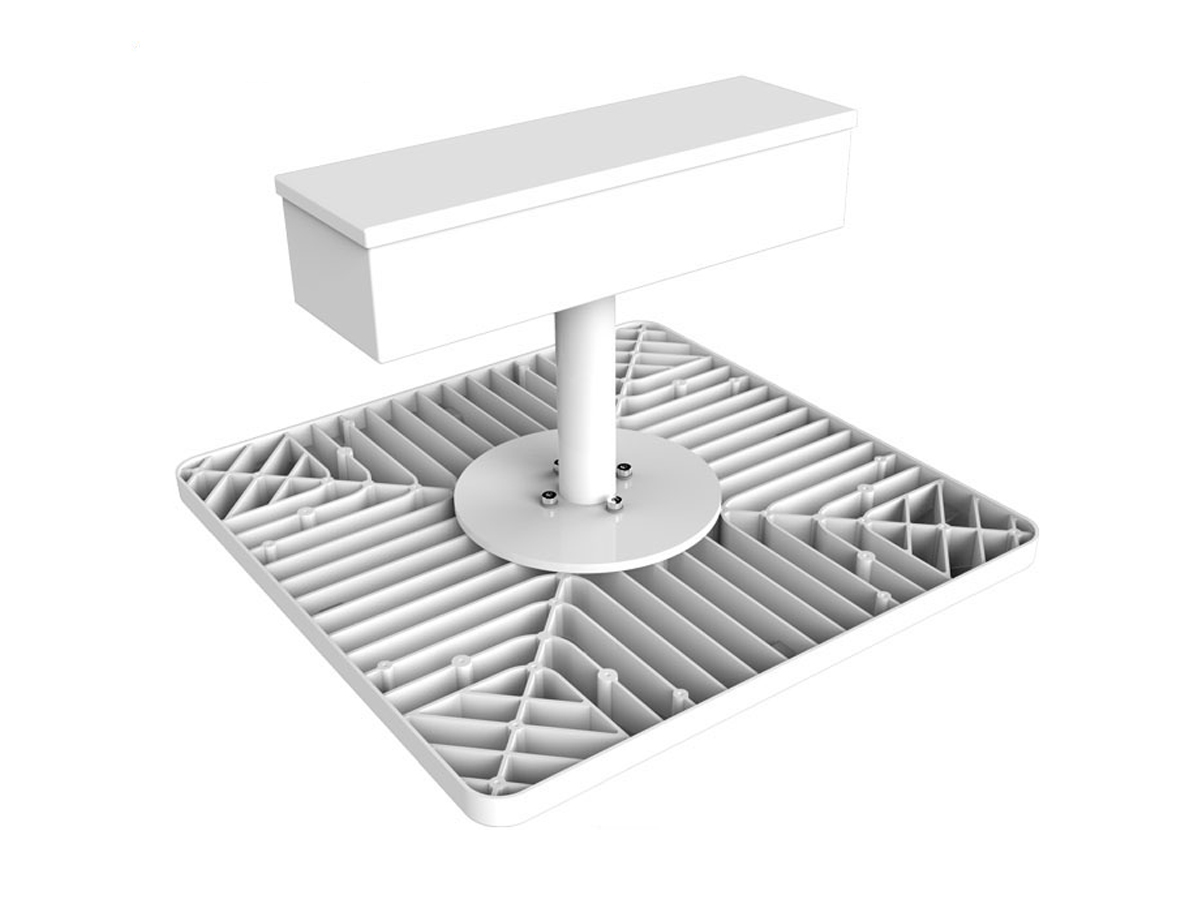

• 3 type mounting brackets.
• Meanwell driver and Osram led chip.
• Clear or diffused or no cover available.

Mechanical Specification (mm)

120w gas station led lights dimension

Technical Specifications

Item No.	GSL-120W
Rated Power	120W
Input Voltage	100-277Vac,100-347Vac,200-480Vac
Power Factor	PF>0.95
Beam Angle	120 degree
Light Source/Count	Osram led chip
Lamp Base	wires
LED Luminous Efficiency	130lm/w or 150lm/
Luminous Flux	18,000lm
Color Temperature Standard	2700-6700k
Color Rendering Index(CRI)	Ra＞83
LED Emitter Life	50,000 hours
Replacement	300-400w MH, HPS
Working Environment	Indoor/Outdoor Lighting
Operating Temperature	-40~50℃
The Dimensions	280280mm（1111inch）

Applications

This LED light is widely used for gas station lighting, and other places where need energy saving
and high color rendering index lighting.

led square canopy light application

Installation

led square canopy light

The relevant product parameters

Item No.	Rated Power	Input Voltage	Power Factor	Replacement	Luminous Flux	CRI
GSL-60W	60W	100-277VAC	PF>0.95	105-175w MH, HPS	9,000lm	Ra>83
GSL-80W	80W	100-277VAC	PF>0.95	200-250w MH, HPS	12,000lm	Ra>83
GSL-100W	100W	100-277VAC	PF>0.95	250-300w MH, HPS	15,000lm	Ra>83
GSL-120W	120W	100-277VAC	PF>0.95	300-400w MH, HPS	18,000lm	Ra>83
GSL-150W	150W	100-277VAC	PF>0.95	350-450w MH, HPS	22,500lm	Ra>83
