  • 60W High Bay LED Retrofit Bulb

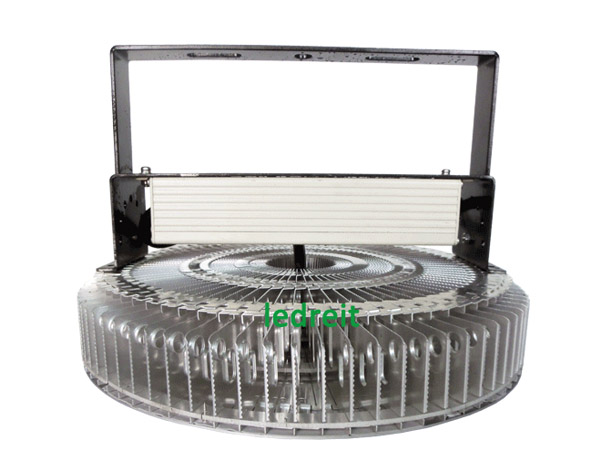

60W High Bay LED Retrofit Bulb

60W High Bay LED Retrofit Bulb

  • Item No.: YPD-60W
  • Input Voltage:100-277Vac ,100-347Vac , 200-480Vac
  • LED: Samsung led
  • Luminous Flux(150lm/w): 9,000lm
  • Product description: 60w LED High Bay-Clear or diffused or no cover available.
  • INQUIRY
Features


• 130lm/w or 150lm/w

• Universal AC input 100-277Vac,100-347Vac,200-480Vac.
• Protections: Short circuit / Over current / Over temperature.
• Aluminum heat sink with fins.
• Meanwell driver and Samsung led chip.
• Clear or diffused or no cover available.


Dimension

60w LED High Bay dimension

Technical Specifications

Model NO.

YPD-60W

Rated Power

60W

Input Voltage

100-277Vac,100-347Vac,200-480Vac

Power Factor

PF>0.95

Lamp Base

E40/E39, E27/E26, Ex39

LED Samsung led

LED Luminous Efficiency

130lm/w or 150lm/w

Luminous Flux(150lm/w) 9,000lm

Color Temperature Standard

WarmWhite: 2,700 3,500 K

Natural White: 4,000 4,500 K

Cool White: 5,500 6,700K

CRI

Ra>83

LED Emitter Life

50,000hours

Replacement

225-250w HID, CFL

Working Environment

Indoor/Outdoor Lighting

Operating Temperature

-40~50℃

Dimensions

300*245mm/11.8*9.6inch

Warranty

5 years factory warranty


Applications

Indoor lighting.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting

The relevant product parameters

Model NO.

YPD-60WYPD-80WYPD-100WYPD-120WYPD-150W

Rated Power

60W80W100W120W150W
LEDSamsung ledSamsung ledSamsung ledSamsung ledSamsung led
LED Luminous Efficiency150lm/w150lm/w150lm/w150lm/w150lm/w

Luminous Flux

9,000lm12,000lm15,000lm18,000lm22,500lm

Replacement

225-250w
HID, CFL

275-300w
MH, HPS
350-400w
MH, HPS
400-450w
MH, HPS
400-500w
MH, HPS

Power Factor

PF>0.95PF>0.95PF>0.95PF>0.95PF>0.95

Lamp Base

E40/E39,
E27/E26, Ex39
E40/E39,
E27/E26, Ex39
E40/E39,
E27/E26, Ex39
E40/E39,
E27/E26, Ex39

E40/E39,
E27/E26, Ex39

CRIRa>83Ra>83Ra>83Ra>83Ra>83
Warranty5 years factory warranty5 years factory warranty5 years factory warranty5 years factory warranty5 years factory warranty
