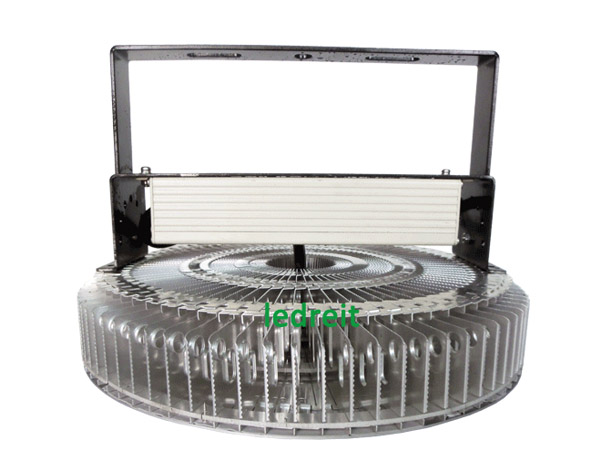

100W High Bay LED Retrofit Bulb

Item No.: YPD-100W
Input Voltage:100-277Vac ,100-347Vac , 200-480Vac
LED: Samsung led
Luminous Flux(150lm/w): 15,000lm
Product description: high bay led 100w-major to replace the Metal Halide/HPS/CFL with screwed lamp base directly.
INQUIRY

Features

• 130lm/w or 150lm/w.
• Universal AC input 100-277Vac,100-347Vac,200-480Vac.
• Protections: Short circuit / Over current / Over temperature.
• Aluminum heat sink with fins.
• Meanwell driver and Samsung led chip.
• Clear or diffused or no cover available.

Dimension

high bay led 100w dimension

Technical Specifications

Model NO.	YPD-100W
Rated Power	100W
Input Voltage	100-277Vac,100-347Vac,200-480Vac
Power Factor	PF>0.95
Lamp Base	E40/E39, E27/E26, Ex39
LED	Samsung led
LED Luminous Efficiency	130lm/w or 150lm/w
Luminous Flux(150lm/w)	15,000lm
Color Temperature Standard	WarmWhite: 2,700 3,500 K
	Natural White: 4,000 4,500 K
	Cool White: 5,500 6,700K
CRI	Ra>83
LED Emitter Life	50,000hours
Replacement	350-400w MH, HPS
Working Environment	Indoor/Outdoor Lighting
Operating Temperature	-40~50℃
Dimensions	300245mm/11.89.6inch
Warranty	5 years factory warranty

Applications

Indoor lighting.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting

The relevant product parameters

Model NO.	YPD-60W	YPD-80W	YPD-100W	YPD-120W	YPD-150W
Rated Power	60W	80W	100W	120W	150W
LED	Samsung led	Samsung led	Samsung led	Samsung led	Samsung led
LED Luminous Efficiency	150lm/w	150lm/w	150lm/w	150lm/w	150lm/w
Luminous Flux	9,000lm	12,000lm	15,000lm	18,000lm	22,500lm
Replacement	225-250w HID, CFL	275-300w MH, HPS	350-400w MH, HPS	400-450w MH, HPS	400-500w MH, HPS
Power Factor	PF>0.95	PF>0.95	PF>0.95	PF>0.95	PF>0.95
Lamp Base	E40/E39, E27/E26, Ex39	E40/E39, E27/E26, Ex39	E40/E39, E27/E26, Ex39	E40/E39, E27/E26, Ex39	E40/E39, E27/E26, Ex39
CRI	Ra>83	Ra>83	Ra>83	Ra>83	Ra>83
Warranty	5 years factory warranty	5 years factory warranty	5 years factory warranty	5 years factory warranty	5 years factory warranty
