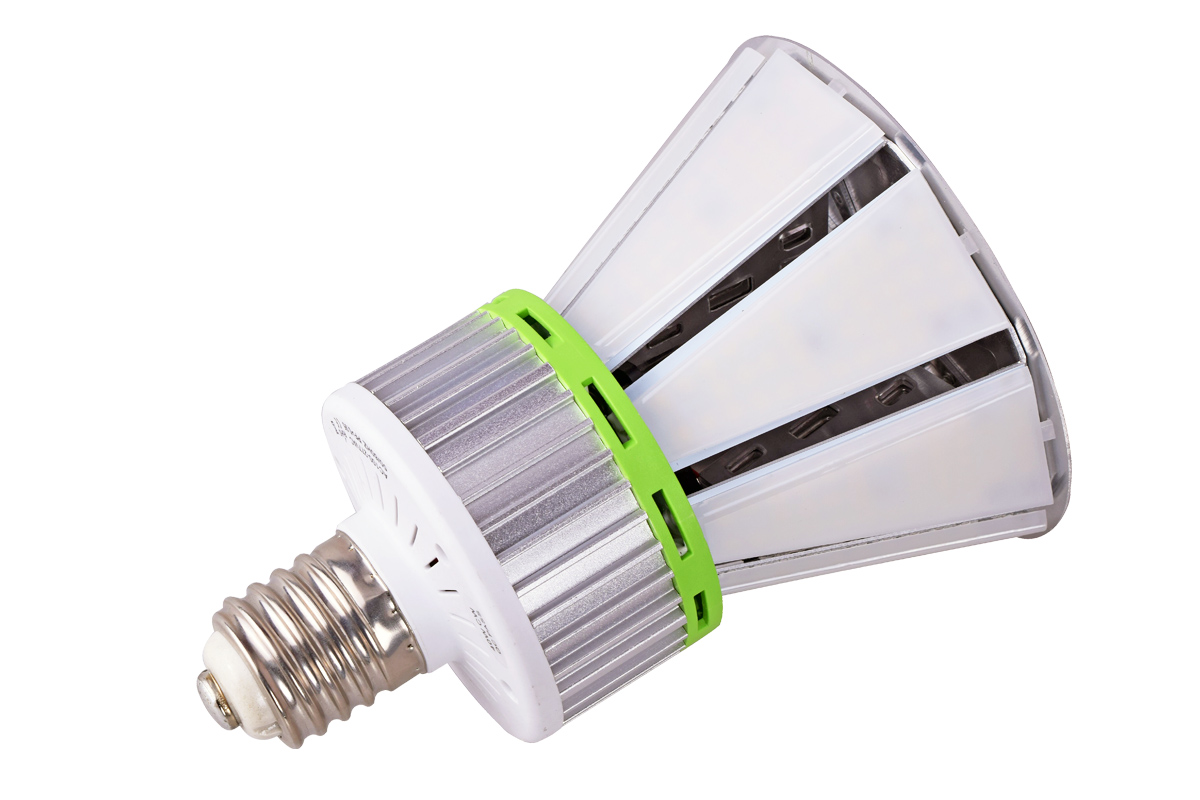

Home > LED Dark Sky Friendly Corn Lamp
| Features |
• 130lm/w, 150lm/w is available.
• Universal AC input 100-277Vac,100-347Vac,200-480Vac
• Protections: Short circuit / Over current / Over temperature(Reduce the current).
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused or no cover available.
| Dimension |
| Details |
| Technical Specifications |
Model NO. | YL-60W8S |
Rated Power | 60W |
Input Voltage | 100-277Vac,100-347Vac,200-480Vac |
Input Current | 0.64A / 115VAC ; 0.32A / 230VAC ; 0.3A / 277VAC |
Power Factor | PF>0.95 |
Power Efficiency | >88% |
Beam Angle | 360° |
Lamp Base | E40/E39, E27/E26, Ex39 |
LED Luminous Efficiency | 130lm/w, 150lm/w |
| Luminous Flux(125lm/w) | 7,800lm |
Luminous Flux(150lm/w) | 9,000lm |
Color Temperature Standard | WarmWhite: 2,700 3,500 K |
Natural White: 4,000 4,500 K | |
Cool White: 5,500 6,700K | |
CRI | Ra>83 |
LED Emitter Life | 50,000hours |
Replacement | 225W-250W MH/HPS |
Working Environment | Indoor/Outdoor Lighting |
Operating Temperature | -40~50℃ |
Dimensions | Φ128*190mm/Φ5.0*7.5inch |
Warranty | 5 years factory warranty |
Packing | 1pc/Box, 12pcs/Carton |
| Advantage |
| Application |
Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/ Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
| Certificate |
| The relevant product parameters |
Model NO. | YL-15W6S | ||||||
Rated Power | 80W | 60W | 50W | 40W | 30W | 20W | 15W |
Luminous Flux(130lm/w) | 10,400lm | 7,800lm | 6,500lm | 5,200lm | 3,900lm | 2,600lm | 1,950lm |
Luminous Flux(150lm/w) | 12,000lm | 9,000lm | 7,500lm | 6,000lm | 4,500lm | 3,000lm | 2,250lm |
Replacement | 275-300w MH,HPS | 225W-250W MH/HPS | 175W-225W MH/HPS | 125W-150W MH/HPS | 75W-105W MH/HPS | 50W-75W MH/HPS | 30-50W HID,CF |
| Dimensions | Φ167*195mm Φ6.6*7.7inch | Φ128*190mm Φ5.0*7.5inch | Φ128*190mm Φ5.0*7.5inch | Φ90*136mm Φ3.6*5.4inch | |||
Power Factor | PF>0.95 | ||||||
Input Voltage | 100-277Vac,100-347Vac,200-480Vac | ||||||
Power Efficiency | >88% | ||||||
Beam Angle | 360° | ||||||
Lamp Base | E40/E39, E27/E26, Ex39 | E27/E26 | |||||
LED Luminous Efficiency | >125lm/w, 150lm/w is available | ||||||
Color Temperature Standard | WarmWhite: 2,700 3,500 K | ||||||
Natural White: 4,000 4,500 K | |||||||
Cool White: 5,500 6,700K | |||||||
CRI | Ra>83 | ||||||
LED Emitter Life | 50,000hours | ||||||
Working Environment | Indoor/Outdoor Lighting | ||||||
Operating Temperature | -40~50℃ | ||||||
Warranty | 5 years factory warranty | ||||||
Packing | 1pc/Box, 12pcs/Carton | ||||||
