20W Pathway Retrofit

Item No.: PW-20
Input Voltage:100-277Vac ,100-347Vac , 200-480Vac
Replacement: 40W-60W HID,CFL
Working Environment: Indoor/Outdoor Lighting
Product description: 20w electric pathway lights are direct replacements for conventional lamps.
INQUIRY

Rrtrofit LED Lighting

Out with the old, in with the newest – the future of lighting is now.
LED retrofit lamps are direct replacements for conventional lamps.
LEDs deliver higher lumens per watt (lm/W) which means significant energy and cost savings while lasting
more than ten times longer than conventional sources.
With their directional light, instant on and ability to dim, LEDs are fast becoming the light source of choice.

Product Features

.Delivers >2500 lumens of light, 130lm/w or 150lm/w.
.Ideal for upgrading different lay-in fixtures to energy saving LEDs .
.Quick and easy transition to energy efficient LEDs.
.LED pathway retrofit kit use your existing lighting fixtures.
.Easy install.

Technical Specifications

Rated Power	20W
Universal AC input	100-277Vac,100-347Vac,200-480Vac
Input Current	0.64A / 115VAC ; 0.32A / 230VAC ; 0.3A / 277VAC
Power Factor	PF>0.95
Power Efficiency	>88%
LED Luminous Efficiency	130lm/w, 150lm/w
Luminous Flux(130lm/w)	2,600lm
Luminous Flux(150lm/w)	3,000lm
Color Temperature Standard	3000k,4000k,4500k,5000k,5700k,6500k
Color Rendering Index(CRI)	Ra>83
LED Emitter Life	>50,000hours
Replacement	40W-60W HID,CFL
Working Environment	Indoor/Outdoor Lighting
Operating Temperature	-40~50℃
Warranty	5 years factory warranty

Applications

.Use in new construction or retrofit applications
.Pathway fixture/Canopy fixture/ ceilings fixture
.Other applications

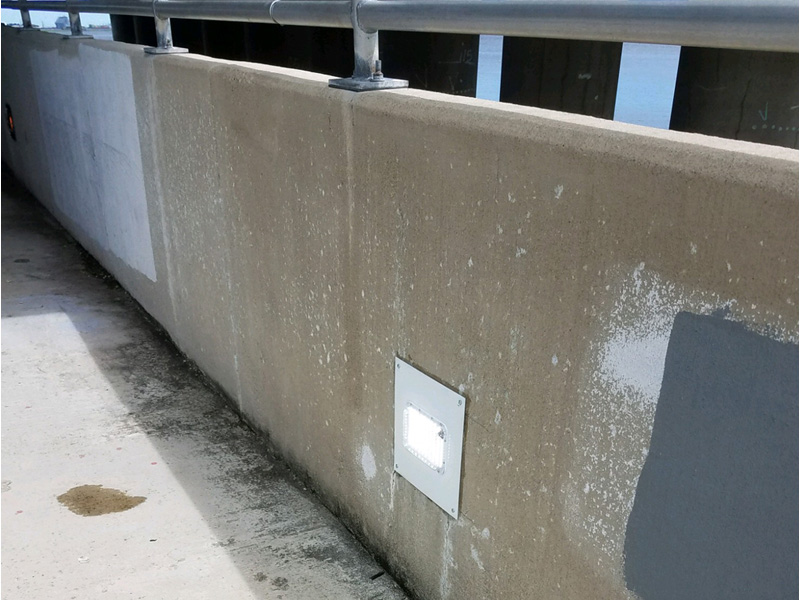

20w electric pathway lights application

The relevant product parameters

Item No.	Watts	Power Factor	Luminous Flux(130lm/w)	Luminous Flux(150lm/w)	Replacement	CRI
PW-20	20W	PF>0.95	2,600lm	3,000lm	40W-60W HID,CFL	Ra>83
PW-30	30W	PF>0.95	3,900lm	4,500lm	75W-105W MH/HPS	Ra>83
PW-40	40W	PF>0.95	5,200lm	6,000lm	125W-150W MH/HPS	Ra>83
PW-60	60W	PF>0.95	7,800lm	9,000lm	175W-250W MH/HPS	Ra>83
